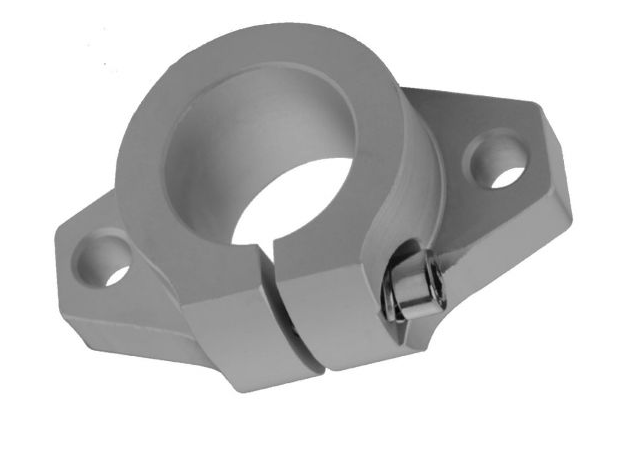

Flange type Bracket Shaft/ Rod Support, End Support Shaft
In stock
The SHF Series Flange Type Shaft Support Bracket is a precision mounting support designed for securing linear shafts and guide rods in motion systems. Its flange mounting design provides strong support, accurate alignment, and stable performance for CNC machines, 3D printers, robotics, and automation equipment.
Description
The SHF Series Flange Type Bracket Linear Rail Shaft Rod Support is a high-quality shaft support component used to securely hold hardened smooth rods in linear motion applications. Manufactured from durable aluminum alloy with a precision-machined clamping structure, it ensures excellent shaft stability, reduced vibration, and reliable operation.
The flange mounting design allows easy installation on machine frames and flat surfaces while providing strong and accurate shaft positioning. The split clamp with locking screws securely fixes the shaft in place for smooth and precise motion control.
Available in multiple sizes such as SHF8, SHF10, SHF12, SHF16, SHF20, and more, the SHF series is widely used in CNC routers, 3D printers, laser engraving machines, robotics, industrial automation systems, and DIY mechanical projects.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Flange Type Shaft Support Bracket |
| Series | SHF Series |
| Material | Aluminum Alloy |
| Support Type | Linear Shaft / Rod Support |
| Mounting Type | Flange Mount |
| Compatible Shaft | Hardened Smooth Rod |
| Available Sizes | SHF8, SHF10, SHF12, SHF16, SHF20, etc. |
| Locking Method | Screw Clamp Locking |
| Applications | CNC, 3D Printer, Robotics, Automation |
| Features | Strong support, precise alignment, easy installation |
| Surface Finish | Anodized Aluminum Finish |
| Durability | High Strength & Long Service Life |
Key Features
- Strong and stable shaft support
- Durable aluminum alloy construction
- Precision flange mounting design
- Easy installation and adjustment
- Secure screw locking mechanism
- Compatible with standard smooth rods
- Ideal for CNC and 3D printer applications
- Long-lasting and reliable performance
